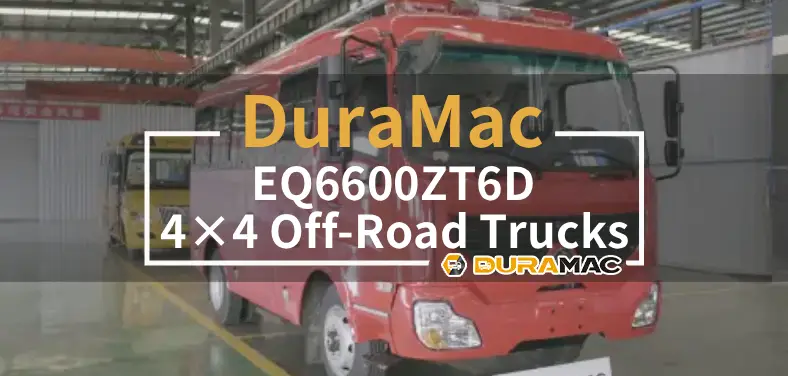

DuraMac 4×4 Off-Road Trucks EQ6600ZT6D
Dongfeng Special Vehicle Co., Ltd.’s EQ6600ZT6D is a 4×4 off-road passenger vehicle that meets National VI emission standards, equipped with a 170-horsepower Weichai engine with strong torque (600N.m). It uses military bridge technology and transfer case, equipped with all-terrain tires, and excellent off-road capability.
With a rated passenger capacity of 10-17 people, it is suitable for complex road conditions such as oil exploration, forest fire fighting, and special operation transportation, making it a reliable off-road vehicle in harsh environments.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
Advantages of Dongfeng EQ6600ZT6D 4×4 Off-Road Trucks
Excellent Off-road Performance: Military-grade 4×4 system, professional off-road tires, strong off-road capability.
Safe and Reliable: ABS + air brake + full vehicle seat belts ensure driving safety.
Widely Applicable: Flexible 10-17 seat layout, adaptable to various special operation scenarios.
Technical Specifications
| Total Length (mm): | 5990 |
| Total Width (mm): | 2280 |
| Total Height (mm): | 2810(With Sunroof) 3030(With full-top air conditioning) |
| Interior Height (mm) | 1630 |
| Wheelbase (mm): | 3300 |
| Front Suspension / Rear Suspension (mm): | 1340/1350 |
| Approach/Departure Angle (°): | 22/25 |
| Step Height (mm): | 490 |
| Rated Maximum Gross Vehicle Weight (kg) | 7300 |
| Rated Number of Passengers (Persons) | 10-17 |
| Top Speed (km/h) | 100 |
| Minimum Ground Clearance (mm) | 235 (4×4 part-time drive) |
| Track (Front/Rear) (mm) | 1810/1700 |
Model | Total Length(mm) | Overall Width(mm) | Total Height(mm) | Maximum Speed (km/h) | Maximum Total Mass(kg) |
| EQ6600ZT6D | 5990 | 2280 | 2810(Standard Vehicle) 3030(With Full-Top Air Conditioning) | 100 | 7300 |
| EQ6680ZT6D | 6800 | 2280 | 3020 (Standard Vehicle) 3155 (With Full-Top Air Conditioning) | 100 | 8150 |
| EQ6820ZT6D | 8200 | 2380 | 3050 (With Sunroof) 3250 (With Full-Top Air Conditioning) | 100 | 12000 |
| EQ2125GTJ2 | ≤6700 Customizable Upon Request | ≤2550 | ≤3150(Fully Loaded) ≤3300(No-load) | 110 | 12500 |
| EQ2111GTJ2 | ≤6700 Customizable Upon Request | ≤2550 | ≤3150(Fully Loaded) ≤3320(No-load) | 120 | 11000 |
| EQ2120GTJ2 | ≤6700 Customizable Upon Request | ≤2550 | ≤3150(Fully Loaded) ≤3320(No-load) | 120 | 12500 |
| EQ2123GTJ2 | ≤6800 Customizable Upon Request | ≤2550 | ≤3150(Fully Loaded) ≤3320(No-load) | 120 | 12500 |
| EQ2124GTJ2 | ≤6700 (Customizable Upon Request) | ≤2550 | ≤3150(Fully Loaded) ≤3150(Fully Loaded) | 120 | 12500 |
| ——END—— | |||||
Basic information of Dongfeng EQ6603LT6A motor | |||
| Engine Model | WP4.1NQ170E61 | Engine Manufacturer | Weichai Power Co., Ltd. |
| Location/Fuel Type | Front-engine/Diesel | Enginetype | Inline four-cylinder, four-stroke, water-cooled, turbocharged, intercooled, electronically controlled single-point injection |
| Maximum power (kw) | 125/2600 | Maximum Torque (Nm/rpm) | 600/1300-1900 rpm |
| Displacement (L): | 4.088L | Emission Standard: | China VI |
| ——END—— | |||
Chassis Parameters And Configuration | ||
| Item | Standard Configuration | Optional configuration |
| Chassis Model | EQ6580KZ6T, Dongfeng Special Vehicle Co., Ltd | — — |
| Transmission | 6DS60T Fast, 6-speed | — — |
| Clutch | Ø380 single-plate, dry type, diaphragm spring, clutch assist | — — |
| Front Axle | Dongfeng Dana, 2.7 tons | — — |
| Rear Axle | Dongfeng Dana, 5.5 tons | — — |
| Suspension | Leaf springs: 10 front, 10 rear, +8 rear, less leaf springs, 3 front, 4 rear | — — |
| Steering | Power steering | — — |
| Braking | Air brake, dryer, ABS, self-leveling arm, exhaust brake, wear alarm | — — |
| Fuel Tank | 135L | — — |
| Tires | 8R19.5, 12PR | — — |
| Battery/Generator | 6-QW-120MF x 2 / 28V, 80A x 2 generators | — — |
| others | Copper radiator, urea pipe, electric heater, engine preheater, steering damper, silicone hoses (radiator inlet and outlet, cooling pipes, water heating pipes) for high-altitude and cold regions with compensating clamps | — — |
| ——END—— | ||
Main body Assembly | ||
| Item | Standard Configuration | Optional configuration |
| Body structure | Body-on-frame | — — |
| Interior | Molded soft interior | — — |
| Doors and Door Pumps | Driver’s and co-driver’s doors (electric lift windows), manually rotating passenger door, rear container-type double doors | — — |
| Side Windows | Fully bonded windows with middle windows (F green), fully bonded closed windows, partial middle windows + partial fully bonded closed windows | — — |
| Windshield | Laminated front windshield, tempered rear windshield (no rear luggage compartment) | — — |
| Rearview System | Steel frame asymmetric manual lever rearview mirror | — — |
| Air – conditioning System | Full roof-mounted air conditioner (cooling capacity: 14Kw) or driving area air conditioner (cooling capacity: 3.5Kw) | — — |
| Heating System | — — | — — |
| — — | — — | |
| Independent heating water pump (alpine region) | — — | |
| Defroster | Variable-speed defroster 24V, 280W | — — |
| Audio-visual System | MP3 player with USB interface | — — |
| Lamp | Front and rear combination lamps | — — |
| Wiper | Forward-scraping electric wiper | — — |
| Hatch Door | Steel plate side hatch door | — — |
| Seats | 17 seats, shock-absorbing driver’s seat, mid-range seats (white + black faux leather, adjustable backrest, upward armrests) | — — |
| Paint | Domestic solid color paint | — — |
| Others | 2.5mm aluminum checkered floor, 1 fire extinguisher (2KG), 3 safety hammers, electronic clock, DC816A horizontal ordinary sunroof, front windshield sun visor (ordinary car), front windshield driver and co-driver double half-roll sunshades (air-conditioned car), air horn, full car seat belts, driver’s seat belt alarm, mechanical power-off switch, GPS driving recorder, passenger door pneumatic telescopic step, T-BOX, engine compartment, battery compartment, optional independent heating manual and automatic integrated fire extinguishing device, reversing monitoring system, warning lights and sirens, external luggage rack (Note: When the external luggage rack is optional, the vehicle has no sunroof configuration), full vehicle curtains | — — |
| ——END—— | ||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
